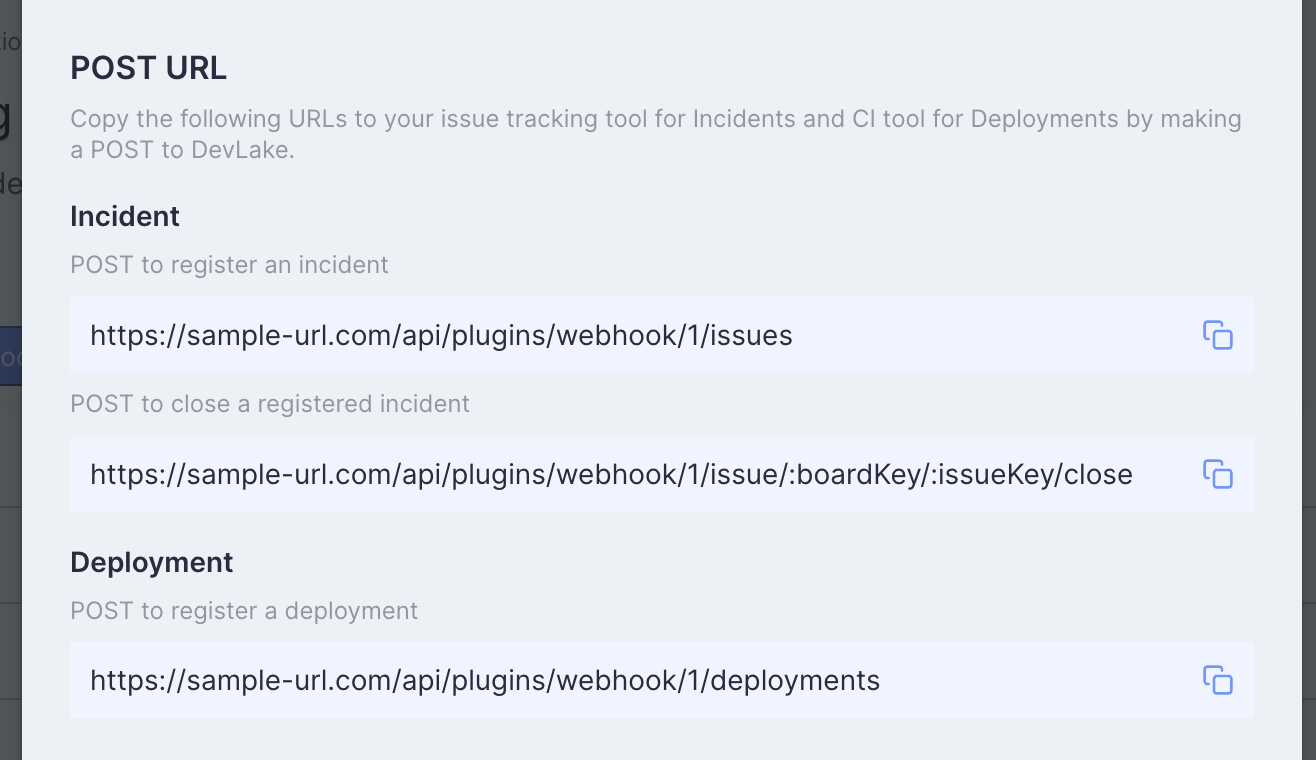

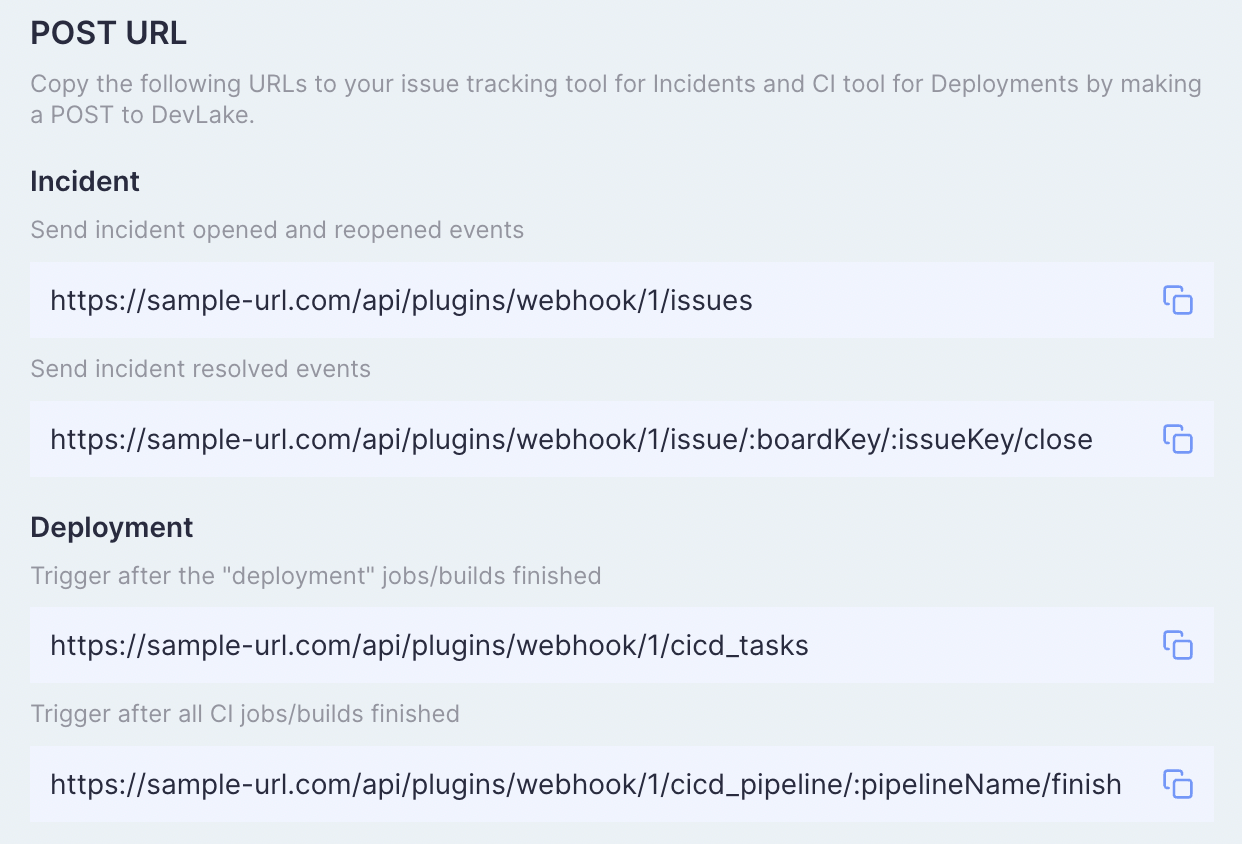

After clicking on the "Generate POST URL" button, you will find four webhook URLs. Copy the ones that suit your usage into your CI or issue tracking systems. You can always come back to the webhook page to copy the URLs later on.
-
+
+
+## Deployments
+
+If your CI/CD tool isn't already supported by DevLake, you can insert curl commands as [Sample API Calls](https://devlake.apache.org/docs/Plugins/webhook#deployments-sample-api-calls) in your CI/CD script to post deployment data to DevLake.
+
+**Notice**: The URL shown in the screenshot and the following samples, `https://sample-url.com/...`, is just an example and should be replaced with the actual URL copied from your Config UI.
+
+#### Register a deployment
+
+`POST https://sample-url.com/api/plugins/webhook/1/cicd_tasks`
+
+The body should be a JSON and include columns as follows:
+
+| Keyname | Required | Notes |
+| :---------: | :------: | ------------------------------------------------------------ |
+| repo_url | ✔️ Yes | Repository url or other **unique** string |
+| commit_sha | ✔️ Yes | commit sha |
+| environment | ✖️ No | which type of machine did this task run in. one of `PRODUCTION` `STAGING` `TESTING` `DEVELOPMENT`. <br />Default is `PRODUCTION` |
+| start_time | ✖️ No | Time, Format should be 2020-01-01T12:00:00+00:00<br />If absent, it is when DevLake receives the POST request. |
+| end_time | ✖️ No | Time, Format should be 2020-01-01T12:00:00+00:00<br />`start_time` becomes required if end_time is provided. If absent, this column is null. |
+
+
+### Deployments Sample API Calls
+
+Sample CURL for the tasks starting and finishing in deploy pipelines:
+
+```
+curl https://sample-url.com/api/plugins/webhook/1/deployments -X 'POST' -d '{"repo_url":"devlake","commit_sha":"015e3d3b480e417aede5a1293bd61de9b0fd051d","start_time":"2020-01-01T12:00:00+00:00","end_time":"2020-01-01T12:59:59+00:00","environment":"PRODUCTION"}'
+```
+
+Read more in Swagger: https://sample-url.com/api/swagger/index.html#/plugins%2Fwebhook/post_plugins_webhook__connectionId_deployments.
+
+
+
+### Sample Config in CircleCI
+
+CircleCI pipelines are the highest-level unit of work. Pipelines include your workflows, which coordinate your jobs. The following demo is regarding a CircleCI workflow running as an entity task in DevLake.
+
+In CircleCI, the data defined in *env* describe the build machine, pipelines and tasks (e.g. `$CIRCLE_WORKFLOW_JOB_ID`), etc. You will need to add config to send task data, read from the *env*, for each workflow.
+
+```yaml
+version: 2.1
+
+jobs:
+ build:
+ docker:
+ - image: cimg/base:stable
+ steps:
+ - checkout
+ - run:
+ name: "build"
+ command: |
+ echo Hello, World!
+
+ deploy:
+ docker:
+ - image: cimg/base:stable
+ steps:
+ - checkout
+ - run:
+ name: "deploy"
+ command: |
+ # record start before deploy
+ start_time=`date '+%Y-%m-%dT%H:%M:%S%z'`
+
+ # some deploy here ...
+ echo Hello, World!
+
+ # send request after deploy
+ curl https://sample-url.com/api/plugins/webhook/1/cicd_tasks -X 'POST' -d "{\"environment\":\"PRODUCTION\",\"start_time\":\"$start_time\",\"repo_url\":\"$CIRCLE_REPOSITORY_URL\",\"commit_sha\":\"$CIRCLE_SHA1\"}"
+
+workflows:
+ say-hello-workflow:
+ jobs:
+ - build
+ - deploy
+```
+
+
## Incident / Issue
If you want to collect issue or incident data from your system, you can use the two webhooks for issues.
-**Notice**: The URL shown in the screenshot and the following samples, `https://sample-url.com/...`, is just an example and should be replaced with the actual URL copied from your Config UI.
-
#### Update or Create Issues
`POST https://sample-url.com/api/plugins/webhook/1/issues`
@@ -76,12 +153,12 @@
-### Sample API Calls
+### Issues Sample API Calls
Sample CURL for Issue Creating :
```
-curl http://127.0.0.1:4000/api/plugins/webhook/1/issues -X 'POST' -d '{"board_key":"DLK","url":"","issue_key":"DLK-1234","title":"a feature from DLK","description":"","epic_key":"","type":"BUG","status":"TODO","original_status":"created","story_point":0,"resolution_date":null,"created_date":"2020-01-01T12:00:00+00:00","updated_date":null,"lead_time_minutes":0,"parent_issue_key":"DLK-1200","priority":"","original_estimate_minutes":0,"time_spent_minutes":0,"time_remaining_minutes":0,"creator_id":"user1131","creator_name":"Nick name 1","assignee_id":"user1132","assignee_name":"Nick name 2","severity":"","component":""}'
+curl https://sample-url.com/api/plugins/webhook/1/issues -X 'POST' -d '{"board_key":"DLK","url":"","issue_key":"DLK-1234","title":"a feature from DLK","description":"","epic_key":"","type":"BUG","status":"TODO","original_status":"created","story_point":0,"resolution_date":null,"created_date":"2020-01-01T12:00:00+00:00","updated_date":null,"lead_time_minutes":0,"parent_issue_key":"DLK-1200","priority":"","original_estimate_minutes":0,"time_spent_minutes":0,"time_remaining_minutes":0,"creator_id":"user1131","creator_name":"Nick name 1","assignee_id":"user1132","assignee_name":"Nick name 2","severity":"","component":""}'
```
Sample CURL for Issue Closing:
@@ -90,203 +167,5 @@
curl http://127.0.0.1:4000/api/plugins/webhook/1/issue/DLK/DLK-1234/close -X 'POST'
```
-Read more in Swagger: http://localhost:4000/api/swagger/index.html#/plugins%2Fwebhook/post_plugins_webhook__connectionId_issues.
+Read more in Swagger: https://sample-url.com/api/swagger/index.html#/plugins%2Fwebhook/post_plugins_webhook__connectionId_issues.
-## Deployments
-
-If your CI/CD tool isn't already supported by DevLake, you can insert curl commands in your CI/CD script to post deployment data to DevLake.
-
-DevLake CI/CD domain-models contain two entities: Pipelines and Tasks. A pipeline can have one or more tasks.
-
-#### Example 1
-

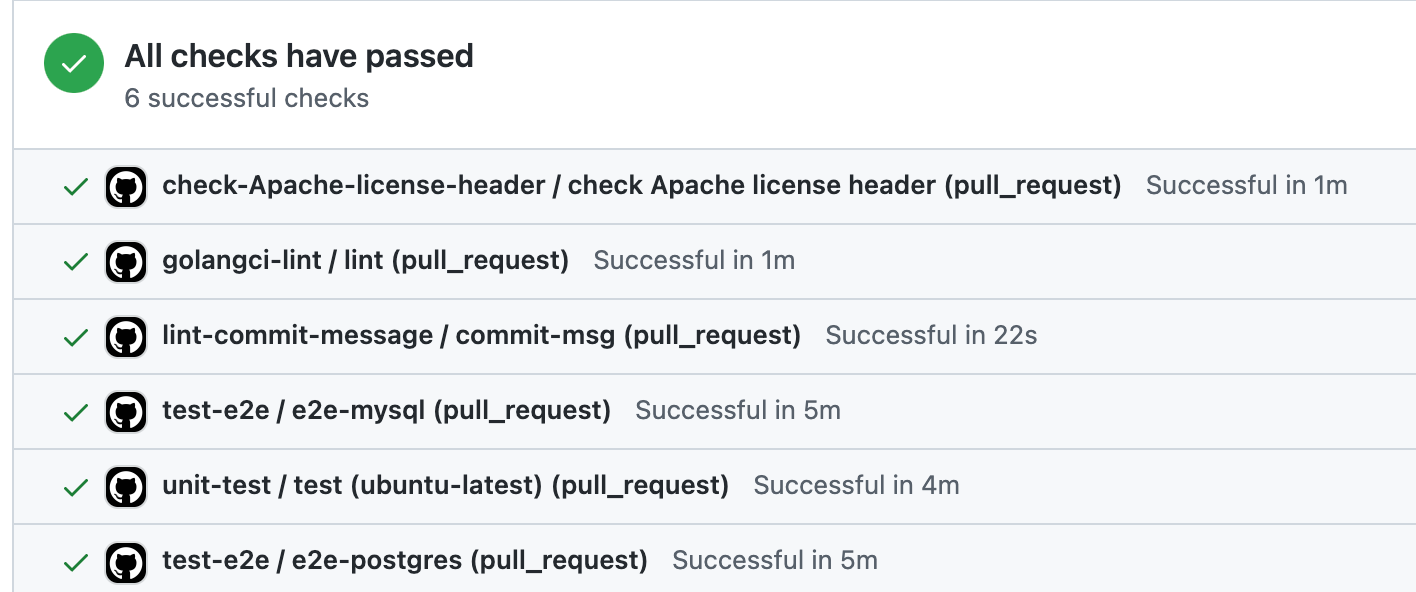

-Take GitHub Actions as an example: the screenshot below shows a GitHub Actions workflow, which consists of 6 jobs including `golangci-lint`, `unit-test`, and etc. When DevLake normalizes data from GitHub Actions, it creates the following records in the domain layer:
-
-- 1 entry in cicd_pipelines table, corresponding to the GitHub workflow
-- 6 entries in cicd_tasks table, one for each job in the GitHub workflow
-
-
-
-#### Example 2
-

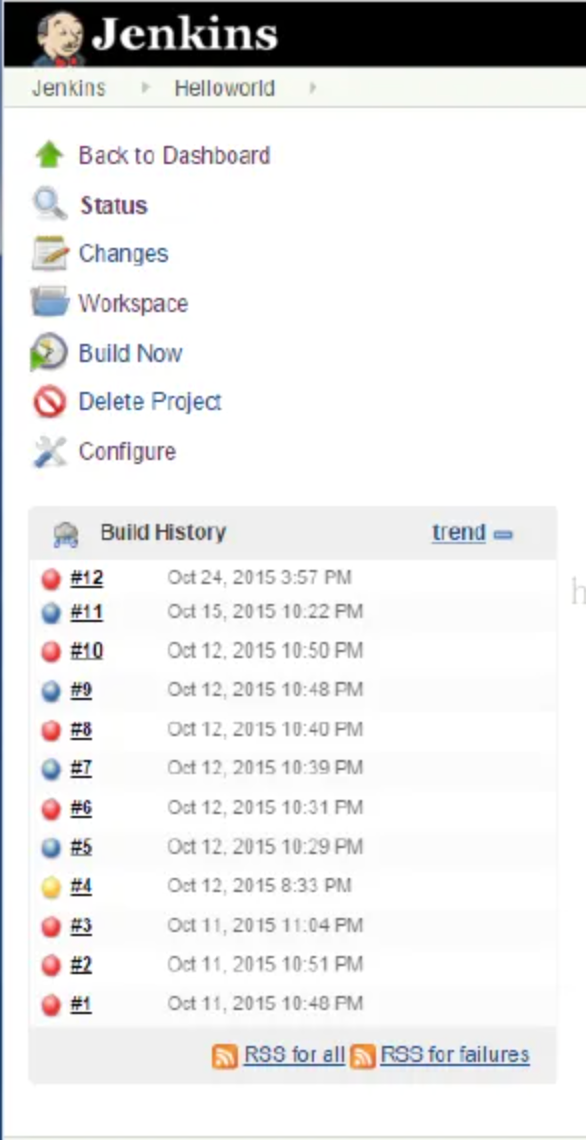

-Now look at the Jenkins build history, as another example: the screenshot below shows 12 Jenkins builds, with no Jenkins stages. When DevLake normalizes data from Jenkins build history, it creates the following records in the domain layer:
-
-- 12 entries in cicd_pipelines table, corresponding to the Jenkins builds
-
-
-(Image from the Internet)
-
-#### Example 3
-

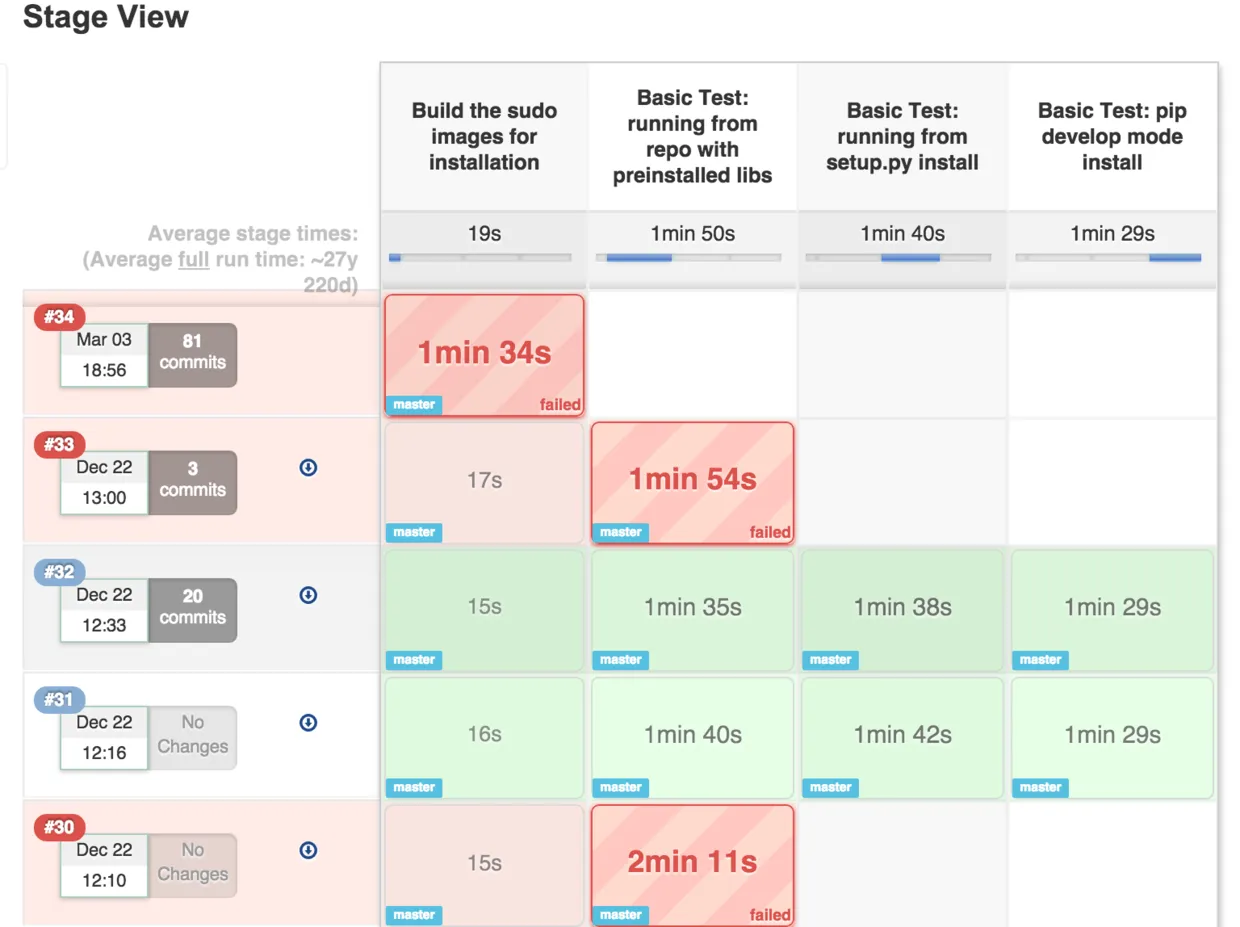

-Jenkins builds may contain stages. This screenshot shows 5 Jenkins builds, which consist of 1~4 stages, including `Build the sudo images for installation`, `Basic Test: running from repo with preinstalled libs`, etc. When DevLake gets and normalizes data from Jenkins, it creates the following records in the domain layer:
-
