SQL Manual

DATABASE MANAGEMENT

For more details, see document Operate-Metadata.

Create Database

IoTDB > create database root.ln
IoTDB > create database root.sgcc
IoTDB> CREATE DATABASE root.ln.wf01
Msg: 300: root.ln has already been created as database.
IoTDB> create database root.ln.wf01
Msg: 300: root.ln has already been created as database.

Show Databases

IoTDB> SHOW DATABASES
IoTDB> SHOW DATABASES root.**

Delete Database

IoTDB > DELETE DATABASE root.ln
IoTDB > DELETE DATABASE root.sgcc
// delete all data, all timeseries and all databases
IoTDB > DELETE DATABASE root.**

Count Databases

IoTDB> count databases
IoTDB> count databases root.*
IoTDB> count databases root.sgcc.*
IoTDB> count databases root.sgcc

Setting up heterogeneous databases (Advanced operations)

Set heterogeneous parameters when creating a Database

CREATE DATABASE root.db WITH SCHEMA_REPLICATION_FACTOR=1, DATA_REPLICATION_FACTOR=3, SCHEMA_REGION_GROUP_NUM=1, DATA_REGION_GROUP_NUM=2;

Adjust heterogeneous parameters at run time

ALTER DATABASE root.db WITH SCHEMA_REGION_GROUP_NUM=1, DATA_REGION_GROUP_NUM=2;

Show heterogeneous databases

SHOW DATABASES DETAILS

TTL

Set TTL

IoTDB> set ttl to root.ln 3600000
IoTDB> set ttl to root.sgcc.** 3600000
IoTDB> set ttl to root.** 3600000

Unset TTL

IoTDB> unset ttl to root.ln
IoTDB> unset ttl to root.sgcc.**
IoTDB> unset ttl to root.**

Show TTL

IoTDB> SHOW ALL TTL
IoTDB> SHOW TTL ON StorageGroupNames

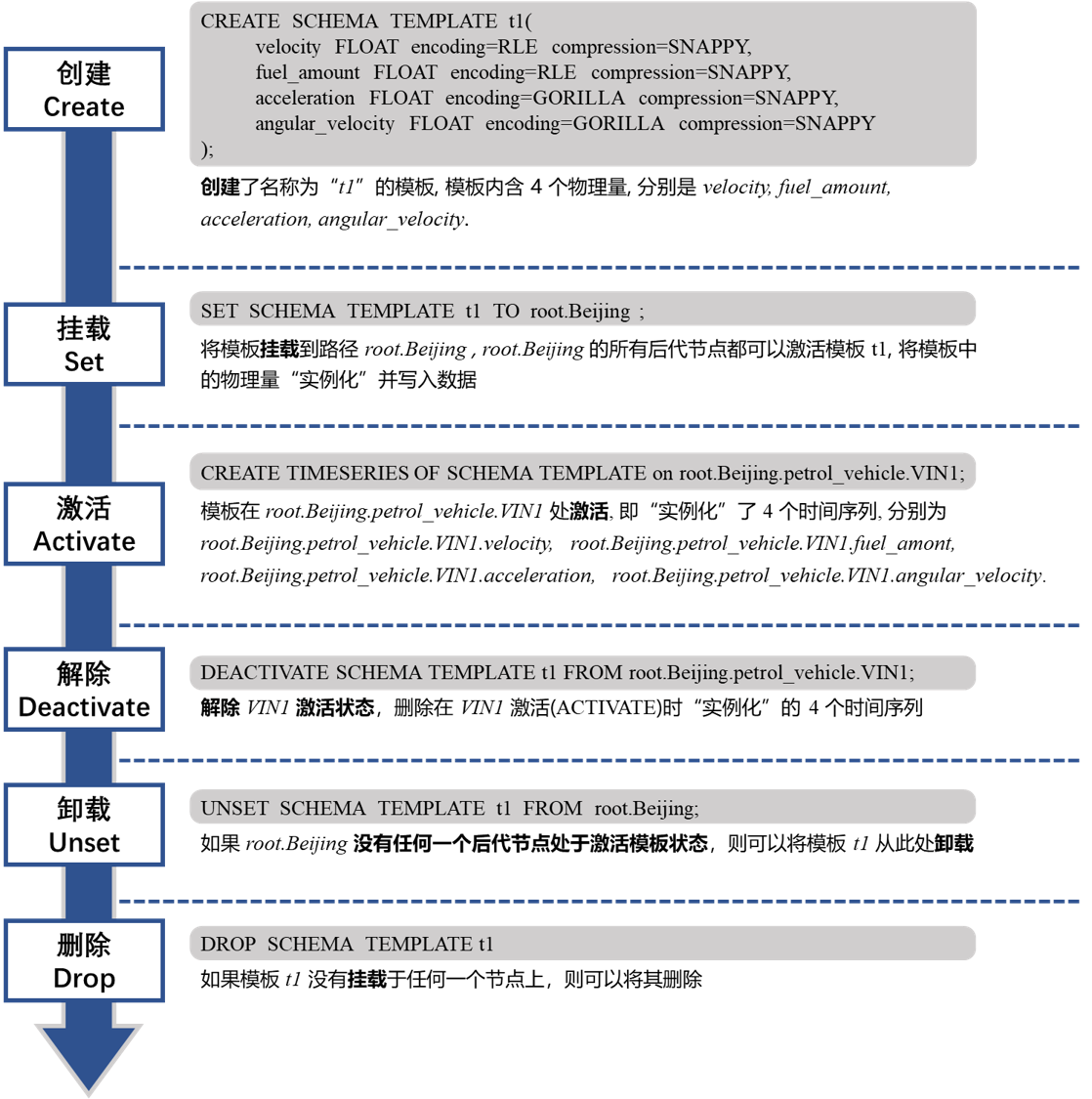

DEVICE TEMPLATE

For more details, see document Operate-Metadata.

Create template(s1 int, s2 float) on root.sg

Create device root.sg.d1

Create Device Template

Example 1: Create a template containing two non-aligned timeseires

IoTDB> create device template t1 (temperature FLOAT encoding=RLE, status BOOLEAN encoding=PLAIN compression=SNAPPY)

Example 2: Create a template containing a group of aligned timeseires

IoTDB> create device template t2 aligned (lat FLOAT encoding=Gorilla, lon FLOAT encoding=Gorilla)

The lat and lon measurements are aligned.

Set Device Template

IoTDB> set device template t1 to root.sg1.d1

Activate Device Template

IoTDB> set device template t1 to root.sg1.d1
IoTDB> set device template t2 to root.sg1.d2
IoTDB> create timeseries using device template on root.sg1.d1
IoTDB> create timeseries using device template on root.sg1.d2

Show Device Template

IoTDB> show device templates
IoTDB> show nodes in device template t1
IoTDB> show paths set device template t1
IoTDB> show paths using device template t1

Deactivate Device Template

IoTDB> delete timeseries of device template t1 from root.sg1.d1
IoTDB> deactivate device template t1 from root.sg1.d1
IoTDB> delete timeseries of device template t1 from root.sg1.*, root.sg2.*
IoTDB> deactivate device template t1 from root.sg1.*, root.sg2.*

Unset Device Template

IoTDB> unset device template t1 from root.sg1.d1

Drop Device Template

IoTDB> drop device template t1

Alter Device Template

IoTDB> alter device template t1 add (speed FLOAT encoding=RLE, FLOAT TEXT encoding=PLAIN compression=SNAPPY)

TIMESERIES MANAGEMENT

For more details, see document Operate-Metadata.

Create Timeseries

IoTDB > create timeseries root.ln.wf01.wt01.status with datatype=BOOLEAN,encoding=PLAIN
IoTDB > create timeseries root.ln.wf01.wt01.temperature with datatype=FLOAT,encoding=RLE
IoTDB > create timeseries root.ln.wf02.wt02.hardware with datatype=TEXT,encoding=PLAIN
IoTDB > create timeseries root.ln.wf02.wt02.status with datatype=BOOLEAN,encoding=PLAIN
IoTDB > create timeseries root.sgcc.wf03.wt01.status with datatype=BOOLEAN,encoding=PLAIN
IoTDB > create timeseries root.sgcc.wf03.wt01.temperature with datatype=FLOAT,encoding=RLE

From v0.13, you can use a simplified version of the SQL statements to create timeseries:

IoTDB > create timeseries root.ln.wf01.wt01.status with datatype=BOOLEAN,encoding=PLAIN
IoTDB > create timeseries root.ln.wf01.wt01.temperature with datatype=FLOAT,encoding=RLE
IoTDB > create timeseries root.ln.wf02.wt02.hardware with datatype=TEXT,encoding=PLAIN
IoTDB > create timeseries root.ln.wf02.wt02.status with datatype=BOOLEAN,encoding=PLAIN
IoTDB > create timeseries root.sgcc.wf03.wt01.status with datatype=BOOLEAN,encoding=PLAIN
IoTDB > create timeseries root.sgcc.wf03.wt01.temperature with datatype=FLOAT,encoding=RLE

Notice that when in the CREATE TIMESERIES statement the encoding method conflicts with the data type, the system gives the corresponding error prompt as shown below:

IoTDB > create timeseries root.ln.wf02.wt02.status WITH DATATYPE=BOOLEAN, ENCODING=TS_2DIFF
error: encoding TS_2DIFF does not support BOOLEAN

Create Aligned Timeseries

IoTDB> CREATE ALIGNED TIMESERIES root.ln.wf01.GPS(latitude FLOAT encoding=PLAIN compressor=SNAPPY, longitude FLOAT encoding=PLAIN compressor=SNAPPY)

Delete Timeseries

IoTDB> delete timeseries root.ln.wf01.wt01.status
IoTDB> delete timeseries root.ln.wf01.wt01.temperature, root.ln.wf02.wt02.hardware
IoTDB> delete timeseries root.ln.wf02.*
IoTDB> drop timeseries root.ln.wf02.*

Show Timeseries

IoTDB> show timeseries root.**
IoTDB> show timeseries root.ln.**
IoTDB> show timeseries root.ln.** limit 10 offset 10
IoTDB> show timeseries root.ln.** where timeseries contains 'wf01.wt'
IoTDB> show timeseries root.ln.** where dataType=FLOAT

Count Timeseries

IoTDB > COUNT TIMESERIES root.**
IoTDB > COUNT TIMESERIES root.ln.**
IoTDB > COUNT TIMESERIES root.ln.*.*.status
IoTDB > COUNT TIMESERIES root.ln.wf01.wt01.status
IoTDB > COUNT TIMESERIES root.** WHERE TIMESERIES contains 'sgcc'
IoTDB > COUNT TIMESERIES root.** WHERE DATATYPE = INT64
IoTDB > COUNT TIMESERIES root.** WHERE TAGS(unit) contains 'c'
IoTDB > COUNT TIMESERIES root.** WHERE TAGS(unit) = 'c'
IoTDB > COUNT TIMESERIES root.** WHERE TIMESERIES contains 'sgcc' group by level = 1
IoTDB > COUNT TIMESERIES root.** GROUP BY LEVEL=1
IoTDB > COUNT TIMESERIES root.ln.** GROUP BY LEVEL=2
IoTDB > COUNT TIMESERIES root.ln.wf01.* GROUP BY LEVEL=2

Tag and Attribute Management

create timeseries root.turbine.d1.s1(temprature) with datatype=FLOAT, encoding=RLE, compression=SNAPPY tags(tag1=v1, tag2=v2) attributes(attr1=v1, attr2=v2)

Rename the tag/attribute key

ALTER timeseries root.turbine.d1.s1 RENAME tag1 TO newTag1

Reset the tag/attribute value

ALTER timeseries root.turbine.d1.s1 SET newTag1=newV1, attr1=newV1

Delete the existing tag/attribute

ALTER timeseries root.turbine.d1.s1 DROP tag1, tag2

Add new tags

ALTER timeseries root.turbine.d1.s1 ADD TAGS tag3=v3, tag4=v4

Add new attributes

ALTER timeseries root.turbine.d1.s1 ADD ATTRIBUTES attr3=v3, attr4=v4

Upsert alias, tags and attributes

add alias or a new key-value if the alias or key doesn't exist, otherwise, update the old one with new value.

ALTER timeseries root.turbine.d1.s1 UPSERT ALIAS=newAlias TAGS(tag3=v3, tag4=v4) ATTRIBUTES(attr3=v3, attr4=v4)

Show timeseries using tags. Use TAGS(tagKey) to identify the tags used as filter key

SHOW TIMESERIES (<`PathPattern`>)? timeseriesWhereClause

returns all the timeseries information that satisfy the where condition and match the pathPattern. SQL statements are as follows:

ALTER timeseries root.ln.wf02.wt02.hardware ADD TAGS unit=c
ALTER timeseries root.ln.wf02.wt02.status ADD TAGS description=test1
show timeseries root.ln.** where TAGS(unit)='c'
show timeseries root.ln.** where TAGS(description) contains 'test1'

count timeseries using tags

COUNT TIMESERIES (<`PathPattern`>)? timeseriesWhereClause
COUNT TIMESERIES (<`PathPattern`>)? timeseriesWhereClause GROUP BY LEVEL=<INTEGER>

returns all the number of timeseries that satisfy the where condition and match the pathPattern. SQL statements are as follows:

count timeseries
count timeseries root.** where TAGS(unit)='c'
count timeseries root.** where TAGS(unit)='c' group by level = 2

create aligned timeseries

create aligned timeseries root.sg1.d1(s1 INT32 tags(tag1=v1, tag2=v2) attributes(attr1=v1, attr2=v2), s2 DOUBLE tags(tag3=v3, tag4=v4) attributes(attr3=v3, attr4=v4))

The execution result is as follows:

IoTDB> show timeseries
+--------------+-----+-------------+--------+--------+-----------+-------------------------+---------------------------+--------+-------------------+
|    timeseries|alias|     database|dataType|encoding|compression|                     tags|                 attributes|deadband|deadband parameters|
+--------------+-----+-------------+--------+--------+-----------+-------------------------+---------------------------+--------+-------------------+
|root.sg1.d1.s1| null|     root.sg1|   INT32|     RLE|     SNAPPY|{"tag1":"v1","tag2":"v2"}|{"attr2":"v2","attr1":"v1"}|    null|               null|
|root.sg1.d1.s2| null|     root.sg1|  DOUBLE| GORILLA|     SNAPPY|{"tag4":"v4","tag3":"v3"}|{"attr4":"v4","attr3":"v3"}|    null|               null|
+--------------+-----+-------------+--------+--------+-----------+-------------------------+---------------------------+--------+-------------------+

Support query：

IoTDB> show timeseries where TAGS(tag1)='v1'
+--------------+-----+-------------+--------+--------+-----------+-------------------------+---------------------------+--------+-------------------+
|    timeseries|alias|     database|dataType|encoding|compression|                     tags|                 attributes|deadband|deadband parameters|
+--------------+-----+-------------+--------+--------+-----------+-------------------------+---------------------------+--------+-------------------+
|root.sg1.d1.s1| null|     root.sg1|   INT32|     RLE|     SNAPPY|{"tag1":"v1","tag2":"v2"}|{"attr2":"v2","attr1":"v1"}|    null|               null|
+--------------+-----+-------------+--------+--------+-----------+-------------------------+---------------------------+--------+-------------------+

The above operations are supported for timeseries tag, attribute updates, etc.

NODE MANAGEMENT

For more details, see document Operate-Metadata.

Show Child Paths

SHOW CHILD PATHS pathPattern

Show Child Nodes

SHOW CHILD NODES pathPattern

Count Nodes

IoTDB > COUNT NODES root.** LEVEL=2
IoTDB > COUNT NODES root.ln.** LEVEL=2
IoTDB > COUNT NODES root.ln.wf01.** LEVEL=3
IoTDB > COUNT NODES root.**.temperature LEVEL=3

Show Devices

IoTDB> show devices
IoTDB> show devices root.ln.**
IoTDB> show devices root.ln.** where device contains 't'
IoTDB> show devices with database
IoTDB> show devices root.ln.** with database

Count Devices

IoTDB> show devices
IoTDB> count devices
IoTDB> count devices root.ln.**

INSERT & LOAD DATA

Insert Data

For more details, see document Write-Delete-Data.

Use of INSERT Statements

Insert Single Timeseries

IoTDB > insert into root.ln.wf02.wt02(timestamp,status) values(1,true)
IoTDB > insert into root.ln.wf02.wt02(timestamp,hardware) values(1, 'v1')

Insert Multiple Timeseries

IoTDB > insert into root.ln.wf02.wt02(timestamp, status, hardware) VALUES (2, false, 'v2')
IoTDB > insert into root.ln.wf02.wt02(timestamp, status, hardware) VALUES (3, false, 'v3'),(4, true, 'v4')

Use the Current System Timestamp as the Timestamp of the Data Point

IoTDB > insert into root.ln.wf02.wt02(status, hardware) values (false, 'v2')

Insert Data Into Aligned Timeseries

IoTDB > create aligned timeseries root.sg1.d1(s1 INT32, s2 DOUBLE)
IoTDB > insert into root.sg1.d1(time, s1, s2) aligned values(1, 1, 1)
IoTDB > insert into root.sg1.d1(time, s1, s2) aligned values(2, 2, 2), (3, 3, 3)
IoTDB > select * from root.sg1.d1

Load External TsFile Tool

For more details, see document Import-Export-Tool.

Load with SQL

Load a single tsfile by specifying a file path (absolute path).

load '/Users/Desktop/data/1575028885956-101-0.tsfile'
load '/Users/Desktop/data/1575028885956-101-0.tsfile' verify=true
load '/Users/Desktop/data/1575028885956-101-0.tsfile' verify=false
load '/Users/Desktop/data/1575028885956-101-0.tsfile' sglevel=1
load '/Users/Desktop/data/1575028885956-101-0.tsfile' onSuccess=delete
load '/Users/Desktop/data/1575028885956-101-0.tsfile' verify=true sglevel=1
load '/Users/Desktop/data/1575028885956-101-0.tsfile' verify=false sglevel=1
load '/Users/Desktop/data/1575028885956-101-0.tsfile' verify=true onSuccess=none
load '/Users/Desktop/data/1575028885956-101-0.tsfile' verify=false sglevel=1 onSuccess=delete

Load a batch of files by specifying a folder path (absolute path).

load '/Users/Desktop/data'
load '/Users/Desktop/data' verify=false
load '/Users/Desktop/data' verify=true
load '/Users/Desktop/data' verify=true sglevel=1
load '/Users/Desktop/data' verify=false sglevel=1 onSuccess=delete

Load with Script

./load-rewrite.bat -f D:\IoTDB\data -h 192.168.0.101 -p 6667 -u root -pw root

DELETE DATA

For more details, see document Write-Delete-Data.

Delete Single Timeseries

IoTDB > delete from root.ln.wf02.wt02.status where time<=2017-11-01T16:26:00;
IoTDB > delete from root.ln.wf02.wt02.status where time>=2017-01-01T00:00:00 and time<=2017-11-01T16:26:00;
IoTDB > delete from root.ln.wf02.wt02.status where time < 10
IoTDB > delete from root.ln.wf02.wt02.status where time <= 10
IoTDB > delete from root.ln.wf02.wt02.status where time < 20 and time > 10
IoTDB > delete from root.ln.wf02.wt02.status where time <= 20 and time >= 10
IoTDB > delete from root.ln.wf02.wt02.status where time > 20
IoTDB > delete from root.ln.wf02.wt02.status where time >= 20
IoTDB > delete from root.ln.wf02.wt02.status where time = 20
IoTDB > delete from root.ln.wf02.wt02.status where time > 4 or time < 0
Msg: 303: Check metadata error: For delete statement, where clause can only contain atomic
expressions like : time > XXX, time <= XXX, or two atomic expressions connected by 'AND'
IoTDB > delete from root.ln.wf02.wt02.status

Delete Multiple Timeseries

IoTDB > delete from root.ln.wf02.wt02 where time <= 2017-11-01T16:26:00;
IoTDB > delete from root.ln.wf02.wt02.* where time <= 2017-11-01T16:26:00;
IoTDB> delete from root.ln.wf03.wt02.status where time < now()
Msg: The statement is executed successfully.

Delete Time Partition (experimental)

IoTDB > DELETE PARTITION root.ln 0,1,2

QUERY DATA

For more details, see document Query-Data.

SELECT [LAST] selectExpr [, selectExpr] ...
    [INTO intoItem [, intoItem] ...]
    FROM prefixPath [, prefixPath] ...
    [WHERE whereCondition]
    [GROUP BY {
        ([startTime, endTime), interval [, slidingStep]) |
        LEVEL = levelNum [, levelNum] ... |
        TAGS(tagKey [, tagKey] ... ) |
        VARIATION(expression[,delta][,ignoreNull=true/false]) |
        CONDITION(expression,[keep>/>=/=/</<=]threshold[,ignoreNull=true/false]) |
        SESSION(timeInterval) |
        COUNT(expression, size[,ignoreNull=true/false])
    }]
    [HAVING havingCondition]
    [ORDER BY sortKey {ASC | DESC}]
    [FILL ({PREVIOUS | LINEAR | constant} (, interval=DURATION_LITERAL)?)]
    [SLIMIT seriesLimit] [SOFFSET seriesOffset]
    [LIMIT rowLimit] [OFFSET rowOffset]
    [ALIGN BY {TIME | DEVICE}]

Basic Examples

Select a Column of Data Based on a Time Interval

IoTDB > select temperature from root.ln.wf01.wt01 where time < 2017-11-01T00:08:00.000

Select Multiple Columns of Data Based on a Time Interval

IoTDB > select status, temperature from root.ln.wf01.wt01 where time > 2017-11-01T00:05:00.000 and time < 2017-11-01T00:12:00.000;

Select Multiple Columns of Data for the Same Device According to Multiple Time Intervals

IoTDB > select status,temperature from root.ln.wf01.wt01 where (time > 2017-11-01T00:05:00.000 and time < 2017-11-01T00:12:00.000) or (time >= 2017-11-01T16:35:00.000 and time <= 2017-11-01T16:37:00.000);

Choose Multiple Columns of Data for Different Devices According to Multiple Time Intervals

IoTDB > select wf01.wt01.status,wf02.wt02.hardware from root.ln where (time > 2017-11-01T00:05:00.000 and time < 2017-11-01T00:12:00.000) or (time >= 2017-11-01T16:35:00.000 and time <= 2017-11-01T16:37:00.000);

Order By Time Query

IoTDB > select * from root.ln.** where time > 1 order by time desc limit 10;

`SELECT` CLAUSE

Use Alias

IoTDB > select s1 as temperature, s2 as speed from root.ln.wf01.wt01;

Nested Expressions

Nested Expressions with Time Series Query

IoTDB > select a,
       b,
       ((a + 1) * 2 - 1) % 2 + 1.5,
       sin(a + sin(a + sin(b))),
       -(a + b) * (sin(a + b) * sin(a + b) + cos(a + b) * cos(a + b)) + 1
from root.sg1;

IoTDB > select (a + b) * 2 + sin(a) from root.sg

IoTDB > select (a + *) / 2  from root.sg1

IoTDB > select (a + b) * 3 from root.sg, root.ln

Nested Expressions query with aggregations

IoTDB > select avg(temperature),
       sin(avg(temperature)),
       avg(temperature) + 1,
       -sum(hardware),
       avg(temperature) + sum(hardware)
from root.ln.wf01.wt01;

IoTDB > select avg(*),
	   (avg(*) + 1) * 3 / 2 -1
from root.sg1

IoTDB > select avg(temperature),
       sin(avg(temperature)),
       avg(temperature) + 1,
       -sum(hardware),
       avg(temperature) + sum(hardware) as custom_sum
from root.ln.wf01.wt01
GROUP BY([10, 90), 10ms);

Last Query

IoTDB > select last status from root.ln.wf01.wt01
IoTDB > select last status, temperature from root.ln.wf01.wt01 where time >= 2017-11-07T23:50:00
IoTDB > select last * from root.ln.wf01.wt01 order by timeseries desc;
IoTDB > select last * from root.ln.wf01.wt01 order by dataType desc;

`WHERE` CLAUSE

Time Filter

IoTDB > select s1 from root.sg1.d1 where time > 2022-01-01T00:05:00.000;
IoTDB > select s1 from root.sg1.d1 where time = 2022-01-01T00:05:00.000;
IoTDB > select s1 from root.sg1.d1 where time >= 2022-01-01T00:05:00.000 and time < 2017-11-01T00:12:00.000;

Value Filter

IoTDB > select temperature from root.sg1.d1 where temperature > 36.5;
IoTDB > select status from root.sg1.d1 where status = true;
IoTDB > select temperature from root.sg1.d1 where temperature between 36.5 and 40;
IoTDB > select temperature from root.sg1.d1 where temperature not between 36.5 and 40;
IoTDB > select code from root.sg1.d1 where code in ('200', '300', '400', '500');
IoTDB > select code from root.sg1.d1 where code not in ('200', '300', '400', '500');
IoTDB > select code from root.sg1.d1 where temperature is null;
IoTDB > select code from root.sg1.d1 where temperature is not null;

Fuzzy Query

Fuzzy matching using Like

IoTDB > select * from root.sg.d1 where value like '%cc%'
IoTDB > select * from root.sg.device where value like '_b_'

Fuzzy matching using Regexp

IoTDB > select * from root.sg.d1 where value regexp '^[A-Za-z]+$'
IoTDB > select * from root.sg.d1 where value regexp '^[a-z]+$' and time > 100

`GROUP BY` CLAUSE

Aggregate By Time without Specifying the Sliding Step Length

IoTDB > select count(status), max_value(temperature) from root.ln.wf01.wt01 group by ([2017-11-01T00:00:00, 2017-11-07T23:00:00),1d);

Aggregate By Time Specifying the Sliding Step Length

IoTDB > select count(status), max_value(temperature) from root.ln.wf01.wt01 group by ([2017-11-01 00:00:00, 2017-11-07 23:00:00), 3h, 1d);

Aggregate by Natural Month

IoTDB > select count(status) from root.ln.wf01.wt01 group by([2017-11-01T00:00:00, 2019-11-07T23:00:00), 1mo, 2mo);
IoTDB > select count(status) from root.ln.wf01.wt01 group by([2017-10-31T00:00:00, 2019-11-07T23:00:00), 1mo, 2mo);

Left Open And Right Close Range

IoTDB > select count(status) from root.ln.wf01.wt01 group by ((2017-11-01T00:00:00, 2017-11-07T23:00:00],1d);

Aggregation By Variation

IoTDB > select __endTime, avg(s1), count(s2), sum(s3) from root.sg.d group by variation(s6)
IoTDB > select __endTime, avg(s1), count(s2), sum(s3) from root.sg.d group by variation(s6, ignoreNull=false)
IoTDB > select __endTime, avg(s1), count(s2), sum(s3) from root.sg.d group by variation(s6, 4)
IoTDB > select __endTime, avg(s1), count(s2), sum(s3) from root.sg.d group by variation(s6+s5, 10)

Aggregation By Condition

IoTDB > select max_time(charging_status),count(vehicle_status),last_value(soc) from root.** group by condition(charging_status=1,KEEP>=2,ignoringNull=true)
IoTDB > select max_time(charging_status),count(vehicle_status),last_value(soc) from root.** group by condition(charging_status=1,KEEP>=2,ignoringNull=false)

Aggregation By Session

IoTDB > select __endTime,count(*) from root.** group by session(1d)
IoTDB > select __endTime,sum(hardware) from root.ln.wf02.wt01 group by session(50s) having sum(hardware)>0 align by device

Aggregation By Count

IoTDB > select count(charging_stauts), first_value(soc) from root.sg group by count(charging_status,5)
IoTDB > select count(charging_stauts), first_value(soc) from root.sg group by count(charging_status,5,ignoreNull=false)

Aggregation By Level

IoTDB > select count(status) from root.** group by level = 1
IoTDB > select count(status) from root.** group by level = 3
IoTDB > select count(status) from root.** group by level = 1, 3
IoTDB > select max_value(temperature) from root.** group by level = 0
IoTDB > select count(*) from root.ln.** group by level = 2

Aggregate By Time with Level Clause

IoTDB > select count(status) from root.ln.wf01.wt01 group by ((2017-11-01T00:00:00, 2017-11-07T23:00:00],1d), level=1;
IoTDB > select count(status) from root.ln.wf01.wt01 group by ([2017-11-01 00:00:00, 2017-11-07 23:00:00), 3h, 1d), level=1;

Aggregation query by one single tag

IoTDB > SELECT AVG(temperature) FROM root.factory1.** GROUP BY TAGS(city);

Aggregation query by multiple tags

IoTDB > SELECT avg(temperature) FROM root.factory1.** GROUP BY TAGS(city, workshop);

Downsampling Aggregation by tags based on Time Window

IoTDB > SELECT avg(temperature) FROM root.factory1.** GROUP BY ([1000, 10000), 5s), TAGS(city, workshop);

`HAVING` CLAUSE

Correct:

IoTDB > select count(s1) from root.** group by ([1,11),2ms), level=1 having count(s2) > 1
IoTDB > select count(s1), count(s2) from root.** group by ([1,11),2ms) having count(s2) > 1 align by device

Incorrect:

IoTDB > select count(s1) from root.** group by ([1,3),1ms) having sum(s1) > s1
IoTDB > select count(s1) from root.** group by ([1,3),1ms) having s1 > 1
IoTDB > select count(s1) from root.** group by ([1,3),1ms), level=1 having sum(d1.s1) > 1
IoTDB > select count(d1.s1) from root.** group by ([1,3),1ms), level=1 having sum(s1) > 1

`FILL` CLAUSE

`PREVIOUS` Fill

IoTDB > select temperature, status from root.sgcc.wf03.wt01 where time >= 2017-11-01T16:37:00.000 and time <= 2017-11-01T16:40:00.000 fill(previous);

`PREVIOUS` FILL and specify the fill timeout threshold

select temperature, status from root.sgcc.wf03.wt01 where time >= 2017-11-01T16:37:00.000 and time <= 2017-11-01T16:40:00.000 fill(previous, 2m);

`LINEAR` Fill

IoTDB > select temperature, status from root.sgcc.wf03.wt01 where time >= 2017-11-01T16:37:00.000 and time <= 2017-11-01T16:40:00.000 fill(linear);

Constant Fill

IoTDB > select temperature, status from root.sgcc.wf03.wt01 where time >= 2017-11-01T16:37:00.000 and time <= 2017-11-01T16:40:00.000 fill(2.0);
IoTDB > select temperature, status from root.sgcc.wf03.wt01 where time >= 2017-11-01T16:37:00.000 and time <= 2017-11-01T16:40:00.000 fill(true);

`LIMIT` and `SLIMIT` CLAUSES (PAGINATION)

Row Control over Query Results

IoTDB > select status, temperature from root.ln.wf01.wt01 limit 10
IoTDB > select status, temperature from root.ln.wf01.wt01 limit 5 offset 3
IoTDB > select status,temperature from root.ln.wf01.wt01 where time > 2017-11-01T00:05:00.000 and time< 2017-11-01T00:12:00.000 limit 2 offset 3
IoTDB > select count(status), max_value(temperature) from root.ln.wf01.wt01 group by ([2017-11-01T00:00:00, 2017-11-07T23:00:00),1d) limit 5 offset 3

Column Control over Query Results

IoTDB > select * from root.ln.wf01.wt01 where time > 2017-11-01T00:05:00.000 and time < 2017-11-01T00:12:00.000 slimit 1
IoTDB > select * from root.ln.wf01.wt01 where time > 2017-11-01T00:05:00.000 and time < 2017-11-01T00:12:00.000 slimit 1 soffset 1
IoTDB > select max_value(*) from root.ln.wf01.wt01 group by ([2017-11-01T00:00:00, 2017-11-07T23:00:00),1d) slimit 1 soffset 1

Row and Column Control over Query Results

IoTDB > select * from root.ln.wf01.wt01 limit 10 offset 100 slimit 2 soffset 0

`ORDER BY` CLAUSE

Order by in ALIGN BY TIME mode

IoTDB > select * from root.ln.** where time <= 2017-11-01T00:01:00 order by time desc;

Order by in ALIGN BY DEVICE mode

IoTDB > select * from root.ln.** where time <= 2017-11-01T00:01:00 order by device desc,time asc align by device;
IoTDB > select * from root.ln.** where time <= 2017-11-01T00:01:00 order by time asc,device desc align by device;
IoTDB > select * from root.ln.** where time <= 2017-11-01T00:01:00 align by device;
IoTDB > select count(*) from root.ln.** group by ((2017-11-01T00:00:00.000+08:00,2017-11-01T00:03:00.000+08:00],1m) order by device asc,time asc align by device

Order by arbitrary expressions

IoTDB > select score from root.** order by score desc align by device
IoTDB > select score,total from root.one order by base+score+bonus desc
IoTDB > select score,total from root.one order by total desc
IoTDB > select base, score, bonus, total from root.** order by total desc NULLS Last,
                                  score desc NULLS Last,
                                  bonus desc NULLS Last,
                                  time desc align by device
IoTDB > select min_value(total) from root.** order by min_value(total) asc align by device
IoTDB > select min_value(total),max_value(base) from root.** order by max_value(total) desc align by device
IoTDB > select score from root.** order by device asc, score desc, time asc align by device

`ALIGN BY` CLAUSE

Align by Device

IoTDB > select * from root.ln.** where time <= 2017-11-01T00:01:00 align by device;

`INTO` CLAUSE (QUERY WRITE-BACK)

IoTDB > select s1, s2 into root.sg_copy.d1(t1), root.sg_copy.d2(t1, t2), root.sg_copy.d1(t2) from root.sg.d1, root.sg.d2;
IoTDB > select count(s1 + s2), last_value(s2) into root.agg.count(s1_add_s2), root.agg.last_value(s2) from root.sg.d1 group by ([0, 100), 10ms);
IoTDB > select s1, s2 into root.sg_copy.d1(t1, t2), root.sg_copy.d2(t1, t2) from root.sg.d1, root.sg.d2 align by device;
IoTDB > select s1 + s2 into root.expr.add(d1s1_d1s2), root.expr.add(d2s1_d2s2) from root.sg.d1, root.sg.d2 align by device;

Using variable placeholders:

IoTDB > select s1, s2
into root.sg_copy.d1(::), root.sg_copy.d2(s1), root.sg_copy.d1(${3}), root.sg_copy.d2(::)
from root.sg.d1, root.sg.d2;

IoTDB > select d1.s1, d1.s2, d2.s3, d3.s4
into ::(s1_1, s2_2), root.sg.d2_2(s3_3), root.${2}_copy.::(s4)
from root.sg;

IoTDB > select * into root.sg_bk.::(::) from root.sg.**;

IoTDB > select s1, s2, s3, s4
into root.backup_sg.d1(s1, s2, s3, s4), root.backup_sg.d2(::), root.sg.d3(backup_${4})
from root.sg.d1, root.sg.d2, root.sg.d3
align by device;

IoTDB > select avg(s1), sum(s2) + sum(s3), count(s4)
into root.agg_${2}.::(avg_s1, sum_s2_add_s3, count_s4)
from root.**
align by device;

IoTDB > select * into ::(backup_${4}) from root.sg.** align by device;

IoTDB > select s1, s2 into root.sg_copy.d1(t1, t2), aligned root.sg_copy.d2(t1, t2) from root.sg.d1, root.sg.d2 align by device;

Maintennance

Generate the corresponding query plan:

explain select s1,s2 from root.sg.d1

Execute the corresponding SQL, analyze the execution and output:

explain analyze select s1,s2 from root.sg.d1 order by s1

OPERATOR

For more details, see document Operator-and-Expression.

Arithmetic Operators

For details and examples, see the document Arithmetic Operators and Functions.

select s1, - s1, s2, + s2, s1 + s2, s1 - s2, s1 * s2, s1 / s2, s1 % s2 from root.sg.d1

Comparison Operators

For details and examples, see the document Comparison Operators and Functions.

# Basic comparison operators
select a, b, a > 10, a <= b, !(a <= b), a > 10 && a > b from root.test;

# `BETWEEN ... AND ...` operator
select temperature from root.sg1.d1 where temperature between 36.5 and 40;
select temperature from root.sg1.d1 where temperature not between 36.5 and 40;

# Fuzzy matching operator: Use `Like` for fuzzy matching
select * from root.sg.d1 where value like '%cc%'
select * from root.sg.device where value like '_b_'

# Fuzzy matching operator: Use `Regexp` for fuzzy matching
select * from root.sg.d1 where value regexp '^[A-Za-z]+$'
select * from root.sg.d1 where value regexp '^[a-z]+$' and time > 100
select b, b like '1%', b regexp '[0-2]' from root.test;

# `IS NULL` operator
select code from root.sg1.d1 where temperature is null;
select code from root.sg1.d1 where temperature is not null;

# `IN` operator
select code from root.sg1.d1 where code in ('200', '300', '400', '500');
select code from root.sg1.d1 where code not in ('200', '300', '400', '500');
select a, a in (1, 2) from root.test;

Logical Operators

For details and examples, see the document Logical Operators.

select a, b, a > 10, a <= b, !(a <= b), a > 10 && a > b from root.test;

BUILT-IN FUNCTIONS

For more details, see document Operator-and-Expression.

Aggregate Functions

For details and examples, see the document Aggregate Functions.

select count(status) from root.ln.wf01.wt01;

select count_if(s1=0 & s2=0, 3), count_if(s1=1 & s2=0, 3) from root.db.d1;
select count_if(s1=0 & s2=0, 3, 'ignoreNull'='false'), count_if(s1=1 & s2=0, 3, 'ignoreNull'='false') from root.db.d1;

select time_duration(s1) from root.db.d1;

Arithmetic Functions

For details and examples, see the document Arithmetic Operators and Functions.

select s1, sin(s1), cos(s1), tan(s1) from root.sg1.d1 limit 5 offset 1000;
select s4,round(s4),round(s4,2),round(s4,-1) from root.sg1.d1;

Comparison Functions

For details and examples, see the document Comparison Operators and Functions.

select ts, on_off(ts, 'threshold'='2') from root.test;
select ts, in_range(ts, 'lower'='2', 'upper'='3.1') from root.test;

String Processing Functions

For details and examples, see the document String Processing.

select s1, string_contains(s1, 's'='warn') from root.sg1.d4;
select s1, string_matches(s1, 'regex'='[^\\s]+37229') from root.sg1.d4;
select s1, length(s1) from root.sg1.d1
select s1, locate(s1, "target"="1") from root.sg1.d1
select s1, locate(s1, "target"="1", "reverse"="true") from root.sg1.d1
select s1, startswith(s1, "target"="1") from root.sg1.d1
select s1, endswith(s1, "target"="1") from root.sg1.d1
select s1, s2, concat(s1, s2, "target1"="IoT", "target2"="DB") from root.sg1.d1
select s1, s2, concat(s1, s2, "target1"="IoT", "target2"="DB", "series_behind"="true") from root.sg1.d1
select s1, substring(s1 from 1 for 2) from root.sg1.d1
select s1, replace(s1, 'es', 'tt') from root.sg1.d1
select s1, upper(s1) from root.sg1.d1
select s1, lower(s1) from root.sg1.d1
select s3, trim(s3) from root.sg1.d1
select s1, s2, strcmp(s1, s2) from root.sg1.d1
select strreplace(s1, "target"=",", "replace"="/", "limit"="2") from root.test.d1
select strreplace(s1, "target"=",", "replace"="/", "limit"="1", "offset"="1", "reverse"="true") from root.test.d1
select regexmatch(s1, "regex"="\d+\.\d+\.\d+\.\d+", "group"="0") from root.test.d1
select regexreplace(s1, "regex"="192\.168\.0\.(\d+)", "replace"="cluster-$1", "limit"="1") from root.test.d1
select regexsplit(s1, "regex"=",", "index"="-1") from root.test.d1
select regexsplit(s1, "regex"=",", "index"="3") from root.test.d1

Data Type Conversion Function

For details and examples, see the document Data Type Conversion Function.

SELECT cast(s1 as INT32) from root.sg

Constant Timeseries Generating Functions

For details and examples, see the document Constant Timeseries Generating Functions.

select s1, s2, const(s1, 'value'='1024', 'type'='INT64'), pi(s2), e(s1, s2) from root.sg1.d1;

Selector Functions

For details and examples, see the document Selector Functions.

select s1, top_k(s1, 'k'='2'), bottom_k(s1, 'k'='2') from root.sg1.d2 where time > 2020-12-10T20:36:15.530+08:00;

Continuous Interval Functions

For details and examples, see the document Continuous Interval Functions.

select s1, zero_count(s1), non_zero_count(s2), zero_duration(s3), non_zero_duration(s4) from root.sg.d2;

Variation Trend Calculation Functions

For details and examples, see the document Variation Trend Calculation Functions.

select s1, time_difference(s1), difference(s1), non_negative_difference(s1), derivative(s1), non_negative_derivative(s1) from root.sg1.d1 limit 5 offset 1000;

SELECT DIFF(s1), DIFF(s2) from root.test;
SELECT DIFF(s1, 'ignoreNull'='false'), DIFF(s2, 'ignoreNull'='false') from root.test;

Sample Functions

For details and examples, see the document Sample Functions.

select equal_size_bucket_random_sample(temperature,'proportion'='0.1') as random_sample from root.ln.wf01.wt01;
select equal_size_bucket_agg_sample(temperature, 'type'='avg','proportion'='0.1') as agg_avg, equal_size_bucket_agg_sample(temperature, 'type'='max','proportion'='0.1') as agg_max, equal_size_bucket_agg_sample(temperature,'type'='min','proportion'='0.1') as agg_min, equal_size_bucket_agg_sample(temperature, 'type'='sum','proportion'='0.1') as agg_sum, equal_size_bucket_agg_sample(temperature, 'type'='extreme','proportion'='0.1') as agg_extreme, equal_size_bucket_agg_sample(temperature, 'type'='variance','proportion'='0.1') as agg_variance from root.ln.wf01.wt01;
select equal_size_bucket_m4_sample(temperature, 'proportion'='0.1') as M4_sample from root.ln.wf01.wt01;
select equal_size_bucket_outlier_sample(temperature, 'proportion'='0.1', 'type'='avg', 'number'='2') as outlier_avg_sample, equal_size_bucket_outlier_sample(temperature, 'proportion'='0.1', 'type'='stendis', 'number'='2') as outlier_stendis_sample, equal_size_bucket_outlier_sample(temperature, 'proportion'='0.1', 'type'='cos', 'number'='2') as outlier_cos_sample, equal_size_bucket_outlier_sample(temperature, 'proportion'='0.1', 'type'='prenextdis', 'number'='2') as outlier_prenextdis_sample from root.ln.wf01.wt01;

select M4(s1,'timeInterval'='25','displayWindowBegin'='0','displayWindowEnd'='100') from root.vehicle.d1
select M4(s1,'windowSize'='10') from root.vehicle.d1

Change Points Function

For details and examples, see the document Time-Series.

select change_points(s1), change_points(s2), change_points(s3), change_points(s4), change_points(s5), change_points(s6) from root.testChangePoints.d1

DATA QUALITY FUNCTION LIBRARY

For more details, see document Operator-and-Expression.

Data Quality

For details and examples, see the document Data-Quality.

# Completeness
select completeness(s1) from root.test.d1 where time <= 2020-01-01 00:00:30
select completeness(s1,"window"="15") from root.test.d1 where time <= 2020-01-01 00:01:00

# Consistency
select consistency(s1) from root.test.d1 where time <= 2020-01-01 00:00:30
select consistency(s1,"window"="15") from root.test.d1 where time <= 2020-01-01 00:01:00

# Timeliness
select timeliness(s1) from root.test.d1 where time <= 2020-01-01 00:00:30
select timeliness(s1,"window"="15") from root.test.d1 where time <= 2020-01-01 00:01:00

# Validity
select Validity(s1) from root.test.d1 where time <= 2020-01-01 00:00:30
select Validity(s1,"window"="15") from root.test.d1 where time <= 2020-01-01 00:01:00

# Accuracy
select Accuracy(t1,t2,t3,m1,m2,m3) from root.test

Data Profiling

For details and examples, see the document Data-Profiling.

# ACF
select acf(s1) from root.test.d1 where time <= 2020-01-01 00:00:05

# Distinct
select distinct(s2) from root.test.d2

# Histogram
select histogram(s1,"min"="1","max"="20","count"="10") from root.test.d1

# Integral
select integral(s1) from root.test.d1 where time <= 2020-01-01 00:00:10
select integral(s1, "unit"="1m") from root.test.d1 where time <= 2020-01-01 00:00:10

# IntegralAvg
select integralavg(s1) from root.test.d1 where time <= 2020-01-01 00:00:10

# Mad
select mad(s0) from root.test
select mad(s0, "error"="0.01") from root.test

# Median
select median(s0, "error"="0.01") from root.test

# MinMax
select minmax(s1) from root.test

# Mode
select mode(s2) from root.test.d2

# MvAvg
select mvavg(s1, "window"="3") from root.test

# PACF
select pacf(s1, "lag"="5") from root.test

# Percentile
select percentile(s0, "rank"="0.2", "error"="0.01") from root.test

# Quantile
select quantile(s0, "rank"="0.2", "K"="800") from root.test

# Period
select period(s1) from root.test.d3

# QLB
select QLB(s1) from root.test.d1

# Resample
select resample(s1,'every'='5m','interp'='linear') from root.test.d1
select resample(s1,'every'='30m','aggr'='first') from root.test.d1
select resample(s1,'every'='30m','start'='2021-03-06 15:00:00') from root.test.d1

# Sample
select sample(s1,'method'='reservoir','k'='5') from root.test.d1
select sample(s1,'method'='isometric','k'='5') from root.test.d1

# Segment
select segment(s1, "error"="0.1") from root.test

# Skew
select skew(s1) from root.test.d1

# Spline
select spline(s1, "points"="151") from root.test

# Spread
select spread(s1) from root.test.d1 where time <= 2020-01-01 00:00:30

# Stddev
select stddev(s1) from root.test.d1

# ZScore
select zscore(s1) from root.test

Anomaly Detection

For details and examples, see the document Anomaly-Detection.

# IQR
select iqr(s1) from root.test

# KSigma
select ksigma(s1,"k"="1.0") from root.test.d1 where time <= 2020-01-01 00:00:30

# LOF
select lof(s1,s2) from root.test.d1 where time<1000
select lof(s1, "method"="series") from root.test.d1 where time<1000

# MissDetect
select missdetect(s2,'minlen'='10') from root.test.d2

# Range
select range(s1,"lower_bound"="101.0","upper_bound"="125.0") from root.test.d1 where time <= 2020-01-01 00:00:30

# TwoSidedFilter
select TwoSidedFilter(s0, 'len'='5', 'threshold'='0.3') from root.test

# Outlier
select outlier(s1,"r"="5.0","k"="4","w"="10","s"="5") from root.test

# MasterTrain
select MasterTrain(lo,la,m_lo,m_la,'p'='3','eta'='1.0') from root.test

# MasterDetect
select MasterDetect(lo,la,m_lo,m_la,model,'output_type'='repair','p'='3','k'='3','eta'='1.0') from root.test
select MasterDetect(lo,la,m_lo,m_la,model,'output_type'='anomaly','p'='3','k'='3','eta'='1.0') from root.test

Frequency Domain

For details and examples, see the document Frequency-Domain.

# Conv
select conv(s1,s2) from root.test.d2

# Deconv
select deconv(s3,s2) from root.test.d2
select deconv(s3,s2,'result'='remainder') from root.test.d2

# DWT
select dwt(s1,"method"="haar") from root.test.d1

# FFT
select fft(s1) from root.test.d1
select fft(s1, 'result'='real', 'compress'='0.99'), fft(s1, 'result'='imag','compress'='0.99') from root.test.d1

# HighPass
select highpass(s1,'wpass'='0.45') from root.test.d1

# IFFT
select ifft(re, im, 'interval'='1m', 'start'='2021-01-01 00:00:00') from root.test.d1

# LowPass
select lowpass(s1,'wpass'='0.45') from root.test.d1

Data Matching

For details and examples, see the document Data-Matching.

# Cov
select cov(s1,s2) from root.test.d2

# DTW
select dtw(s1,s2) from root.test.d2

# Pearson
select pearson(s1,s2) from root.test.d2

# PtnSym
select ptnsym(s4, 'window'='5', 'threshold'='0') from root.test.d1

# XCorr
select xcorr(s1, s2) from root.test.d1 where time <= 2020-01-01 00:00:05

Data Repairing

For details and examples, see the document Data-Repairing.

# TimestampRepair
select timestamprepair(s1,'interval'='10000') from root.test.d2
select timestamprepair(s1) from root.test.d2

# ValueFill
select valuefill(s1) from root.test.d2
select valuefill(s1,"method"="previous") from root.test.d2

# ValueRepair
select valuerepair(s1) from root.test.d2
select valuerepair(s1,'method'='LsGreedy') from root.test.d2

# MasterRepair
select MasterRepair(t1,t2,t3,m1,m2,m3) from root.test

# SeasonalRepair
select seasonalrepair(s1,'period'=3,'k'=2) from root.test.d2
select seasonalrepair(s1,'method'='improved','period'=3) from root.test.d2

Series Discovery

For details and examples, see the document Series-Discovery.

# ConsecutiveSequences
select consecutivesequences(s1,s2,'gap'='5m') from root.test.d1
select consecutivesequences(s1,s2) from root.test.d1

# ConsecutiveWindows
select consecutivewindows(s1,s2,'length'='10m') from root.test.d1

Machine Learning

For details and examples, see the document Machine-Learning.

# AR
select ar(s0,"p"="2") from root.test.d0

# Representation
select representation(s0,"tb"="3","vb"="2") from root.test.d0

# RM
select rm(s0, s1,"tb"="3","vb"="2") from root.test.d0

LAMBDA EXPRESSION

For details and examples, see the document Lambda.

select jexl(temperature, 'expr'='x -> {x + x}') as jexl1, jexl(temperature, 'expr'='x -> {x * 3}') as jexl2, jexl(temperature, 'expr'='x -> {x * x}') as jexl3, jexl(temperature, 'expr'='x -> {multiply(x, 100)}') as jexl4, jexl(temperature, st, 'expr'='(x, y) -> {x + y}') as jexl5, jexl(temperature, st, str, 'expr'='(x, y, z) -> {x + y + z}') as jexl6 from root.ln.wf01.wt01;```

CONDITIONAL EXPRESSION

For details and examples, see the document Conditional Expressions.

select T, P, case
when 1000<T and T<1050 and 1000000<P and P<1100000 then "good!"
when T<=1000 or T>=1050 then "bad temperature"
when P<=1000000 or P>=1100000 then "bad pressure"
end as `result`
from root.test1

select str, case
when str like "%cc%" then "has cc"
when str like "%dd%" then "has dd"
else "no cc and dd" end as `result`
from root.test2

select
count(case when x<=1 then 1 end) as `(-∞,1]`,
count(case when 1<x and x<=3 then 1 end) as `(1,3]`,
count(case when 3<x and x<=7 then 1 end) as `(3,7]`,
count(case when 7<x then 1 end) as `(7,+∞)`
from root.test3

select x, case x when 1 then "one" when 2 then "two" else "other" end from root.test4

select x, case x when 1 then true when 2 then false end as `result` from root.test4

select x, case x
when 1 then 1
when 2 then 222222222222222
when 3 then 3.3
when 4 then 4.4444444444444
end as `result`
from root.test4

TRIGGER

For more details, see document Database-Programming.

Create Trigger

// Create Trigger
createTrigger
    : CREATE triggerType TRIGGER triggerName=identifier triggerEventClause ON pathPattern AS className=STRING_LITERAL uriClause? triggerAttributeClause?
    ;

triggerType
    : STATELESS | STATEFUL
    ;

triggerEventClause
    : (BEFORE | AFTER) INSERT
    ;

uriClause
    : USING URI uri
    ;

uri
    : STRING_LITERAL
    ;

triggerAttributeClause
    : WITH LR_BRACKET triggerAttribute (COMMA triggerAttribute)* RR_BRACKET
    ;

triggerAttribute
    : key=attributeKey operator_eq value=attributeValue
    ;

Drop Trigger

// Drop Trigger
dropTrigger
  : DROP TRIGGER triggerName=identifier
;

Show Trigger

SHOW TRIGGERS

CONTINUOUS QUERY (CQ)

For more details, see document Operator-and-Expression.

CREATE (CONTINUOUS QUERY | CQ) <cq_id>
[RESAMPLE
  [EVERY <every_interval>]
  [BOUNDARY <execution_boundary_time>]
  [RANGE <start_time_offset>[, end_time_offset]]
]
[TIMEOUT POLICY BLOCKED|DISCARD]
BEGIN
  SELECT CLAUSE
    INTO CLAUSE
    FROM CLAUSE
    [WHERE CLAUSE]
    [GROUP BY(<group_by_interval>[, <sliding_step>]) [, level = <level>]]
    [HAVING CLAUSE]
    [FILL ({PREVIOUS | LINEAR | constant} (, interval=DURATION_LITERAL)?)]
    [LIMIT rowLimit OFFSET rowOffset]
    [ALIGN BY DEVICE]
END

Configuring execution intervals

CREATE CONTINUOUS QUERY cq1
RESAMPLE EVERY 20s
BEGIN
SELECT max_value(temperature)
  INTO root.ln.wf02.wt02(temperature_max), root.ln.wf02.wt01(temperature_max), root.ln.wf01.wt02(temperature_max), root.ln.wf01.wt01(temperature_max)
  FROM root.ln.*.*
  GROUP BY(10s)
END

Configuring time range for resampling

CREATE CONTINUOUS QUERY cq2
RESAMPLE RANGE 40s
BEGIN
  SELECT max_value(temperature)
  INTO root.ln.wf02.wt02(temperature_max), root.ln.wf02.wt01(temperature_max), root.ln.wf01.wt02(temperature_max), root.ln.wf01.wt01(temperature_max)
  FROM root.ln.*.*
  GROUP BY(10s)
END

Configuring execution intervals and CQ time ranges

CREATE CONTINUOUS QUERY cq3
RESAMPLE EVERY 20s RANGE 40s
BEGIN
  SELECT max_value(temperature)
  INTO root.ln.wf02.wt02(temperature_max), root.ln.wf02.wt01(temperature_max), root.ln.wf01.wt02(temperature_max), root.ln.wf01.wt01(temperature_max)
  FROM root.ln.*.*
  GROUP BY(10s)
  FILL(100.0)
END

Configuring end_time_offset for CQ time range

CREATE CONTINUOUS QUERY cq4
RESAMPLE EVERY 20s RANGE 40s, 20s
BEGIN
  SELECT max_value(temperature)
  INTO root.ln.wf02.wt02(temperature_max), root.ln.wf02.wt01(temperature_max), root.ln.wf01.wt02(temperature_max), root.ln.wf01.wt01(temperature_max)
  FROM root.ln.*.*
  GROUP BY(10s)
  FILL(100.0)
END

CQ without group by clause

CREATE CONTINUOUS QUERY cq5
RESAMPLE EVERY 20s
BEGIN
  SELECT temperature + 1
  INTO root.precalculated_sg.::(temperature)
  FROM root.ln.*.*
  align by device
END

CQ Management

Listing continuous queries

SHOW (CONTINUOUS QUERIES | CQS)

Dropping continuous queries

DROP (CONTINUOUS QUERY | CQ) <cq_id>

Altering continuous queries

CQs can‘t be altered once they’re created. To change a CQ, you must DROP and reCREATE it with the updated settings.

USER-DEFINED FUNCTION (UDF)

For more details, see document Operator-and-Expression.

UDF Registration

CREATE FUNCTION <UDF-NAME> AS <UDF-CLASS-FULL-PATHNAME> (USING URI URI-STRING)?

UDF Deregistration

DROP FUNCTION <UDF-NAME>

UDF Queries

SELECT example(*) from root.sg.d1
SELECT example(s1, *) from root.sg.d1
SELECT example(*, *) from root.sg.d1

SELECT example(s1, 'key1'='value1', 'key2'='value2'), example(*, 'key3'='value3') FROM root.sg.d1;
SELECT example(s1, s2, 'key1'='value1', 'key2'='value2') FROM root.sg.d1;

SELECT s1, s2, example(s1, s2) FROM root.sg.d1;
SELECT *, example(*) FROM root.sg.d1 DISABLE ALIGN;
SELECT s1 * example(* / s1 + s2) FROM root.sg.d1;
SELECT s1, s2, s1 + example(s1, s2), s1 - example(s1 + example(s1, s2) / s2) FROM root.sg.d1;

Show All Registered UDFs

SHOW FUNCTIONS

ADMINISTRATION MANAGEMENT

For more details, see document Operator-and-Expression.

SQL Statements

Create user (Requires MANAGE_USER permission)

CREATE USER <userName> <password>
eg: CREATE USER user1 'passwd'

Delete user (Requires MANAGE_USER permission)

DROP USER <userName>
eg: DROP USER user1

Create role (Requires MANAGE_ROLE permission)

CREATE ROLE <roleName>
eg: CREATE ROLE role1

Delete role (Requires MANAGE_ROLE permission)

DROP ROLE <roleName>
eg: DROP ROLE role1

Grant role to user (Requires MANAGE_ROLE permission)

GRANT ROLE <ROLENAME> TO <USERNAME>
eg: GRANT ROLE admin TO user1

Revoke role from user(Requires MANAGE_ROLE permission)

REVOKE ROLE <ROLENAME> FROM <USER>
eg: REVOKE ROLE admin FROM user1

List all user (Requires MANAGE_USER permission)

LIST USER

List all role (Requires MANAGE_ROLE permission)

LIST ROLE

List all users granted specific role.（Requires MANAGE_USER permission)

LIST USER OF ROLE <roleName>
eg: LIST USER OF ROLE roleuser

List all role granted to specific user.

LIST ROLE OF USER <username>
eg: LIST ROLE OF USER tempuser

List all privileges of user

LIST PRIVILEGES OF USER <username>;
eg: LIST PRIVILEGES OF USER tempuser;

List all privileges of role

LIST PRIVILEGES OF ROLE <roleName>;
eg: LIST PRIVILEGES OF ROLE actor;

Update password

ALTER USER <username> SET PASSWORD <password>;
eg: ALTER USER tempuser SET PASSWORD 'newpwd';

Authorization and Deauthorization

GRANT <PRIVILEGES> ON <PATHS> TO ROLE/USER <NAME> [WITH GRANT OPTION]；
eg: GRANT READ ON root.** TO ROLE role1;
eg: GRANT READ_DATA, WRITE_DATA ON root.t1.** TO USER user1;
eg: GRANT READ_DATA, WRITE_DATA ON root.t1.**,root.t2.** TO USER user1;
eg: GRANT MANAGE_ROLE ON root.** TO USER user1 WITH GRANT OPTION;
eg: GRANT ALL ON root.** TO USER user1 WITH GRANT OPTION;

REVOKE <PRIVILEGES> ON <PATHS> FROM ROLE/USER <NAME>;
eg: REVOKE READ ON root.** FROM ROLE role1;
eg: REVOKE READ_DATA, WRITE_DATA ON root.t1.** FROM USER user1;
eg: REVOKE READ_DATA, WRITE_DATA ON root.t1.**, root.t2.** FROM USER user1;
eg: REVOKE MANAGE_ROLE ON root.** FROM USER user1;
eg: REVOKE ALL ON ROOT.** FROM USER user1;

Delete Time Partition (experimental)

Eg: IoTDB > DELETE PARTITION root.ln 0,1,2

Continuous Query,CQ

Eg: IoTDB > CREATE CONTINUOUS QUERY cq1 BEGIN SELECT max_value(temperature) INTO temperature_max FROM root.ln.*.* GROUP BY time(10s) END

Maintenance Command

FLUSH

Eg: IoTDB > flush

MERGE

Eg: IoTDB > MERGE
Eg: IoTDB > FULL MERGE

CLEAR CACHE

Eg: IoTDB > CLEAR CACHE

SET SYSTEM TO READONLY / WRITABLE

Eg: IoTDB > SET SYSTEM TO READONLY / WRITABLE

Query abort

Eg: IoTDB > KILL QUERY 1

SQL Manual

DATABASE MANAGEMENT

Create Database

Show Databases

Delete Database

Count Databases

Setting up heterogeneous databases (Advanced operations)

Set heterogeneous parameters when creating a Database

Adjust heterogeneous parameters at run time

Show heterogeneous databases

TTL

Set TTL

Unset TTL

Show TTL

DEVICE TEMPLATE

Create Device Template

Set Device Template

Activate Device Template

Show Device Template

Deactivate Device Template

Unset Device Template

Drop Device Template

Alter Device Template

TIMESERIES MANAGEMENT

Create Timeseries

Create Aligned Timeseries

Delete Timeseries

Show Timeseries

Count Timeseries

Tag and Attribute Management

NODE MANAGEMENT

Show Child Paths

Show Child Nodes

Count Nodes

Show Devices

Count Devices

INSERT & LOAD DATA

Insert Data

Use of INSERT Statements

Insert Data Into Aligned Timeseries

Load External TsFile Tool

Load with SQL

Load with Script

DELETE DATA

Delete Single Timeseries

Delete Multiple Timeseries

Delete Time Partition (experimental)

QUERY DATA

Basic Examples

Select a Column of Data Based on a Time Interval

Select Multiple Columns of Data Based on a Time Interval

Select Multiple Columns of Data for the Same Device According to Multiple Time Intervals

Choose Multiple Columns of Data for Different Devices According to Multiple Time Intervals

Order By Time Query

SELECT CLAUSE

Use Alias

Nested Expressions

Nested Expressions with Time Series Query

Nested Expressions query with aggregations

Last Query

WHERE CLAUSE

Time Filter

Value Filter

Fuzzy Query

GROUP BY CLAUSE

HAVING CLAUSE

FILL CLAUSE

PREVIOUS Fill

PREVIOUS FILL and specify the fill timeout threshold

LINEAR Fill

Constant Fill

LIMIT and SLIMIT CLAUSES (PAGINATION)

Row Control over Query Results

Column Control over Query Results

Row and Column Control over Query Results

ORDER BY CLAUSE

Order by in ALIGN BY TIME mode

Order by in ALIGN BY DEVICE mode

Order by arbitrary expressions

ALIGN BY CLAUSE

`SELECT` CLAUSE

`WHERE` CLAUSE

`GROUP BY` CLAUSE

`HAVING` CLAUSE

`FILL` CLAUSE

`PREVIOUS` Fill

`PREVIOUS` FILL and specify the fill timeout threshold

`LINEAR` Fill

`LIMIT` and `SLIMIT` CLAUSES (PAGINATION)

`ORDER BY` CLAUSE

`ALIGN BY` CLAUSE

`INTO` CLAUSE (QUERY WRITE-BACK)
